Description
Product Description
Get the Highlights
Your Go-To Personal Manufacturing Hub

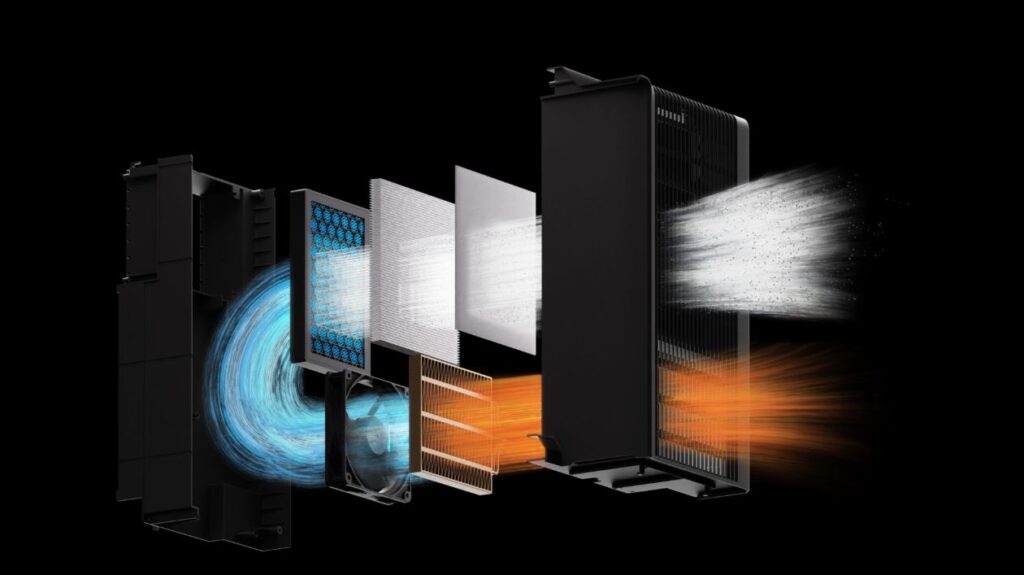

Heavy Duty Air Filtration
Effectively Filter Particulates And VOCs Generated by 3D Printing
For optimal air filtration, we’ve integrated a G3 pre-filter, an H12 HEPA filter, and a premium coconut shell activated carbon filter. This enhanced system effectively minimizes excessive odors and particulates, particularly beneficial when printing in less ventilated spaces.
Technical Specifications
Printing Technology
Fused Deposition Modeling
Body
| Build Volume (W*D*H) | 340*320*340 mm³ |
| Chassis | Aluminum, Steel, Plastic and Glass |
| Laser Safety Windows | Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit |
| Air Assist Pump | Equipped on Laser Edition, normal H2S can upgrade through Laser Upgrade Kit |
Physical Dimensions
| Physical Dimensions | 492*514*626 mm³ |
| Net Weight | H2S: 30 kg H2S Laser Edition: 30.5 kg |
Toolhead
| Hotend | All Metal |
| Extruder Gear | Hardened Steel |
| Nozzle | Hardened Steel |

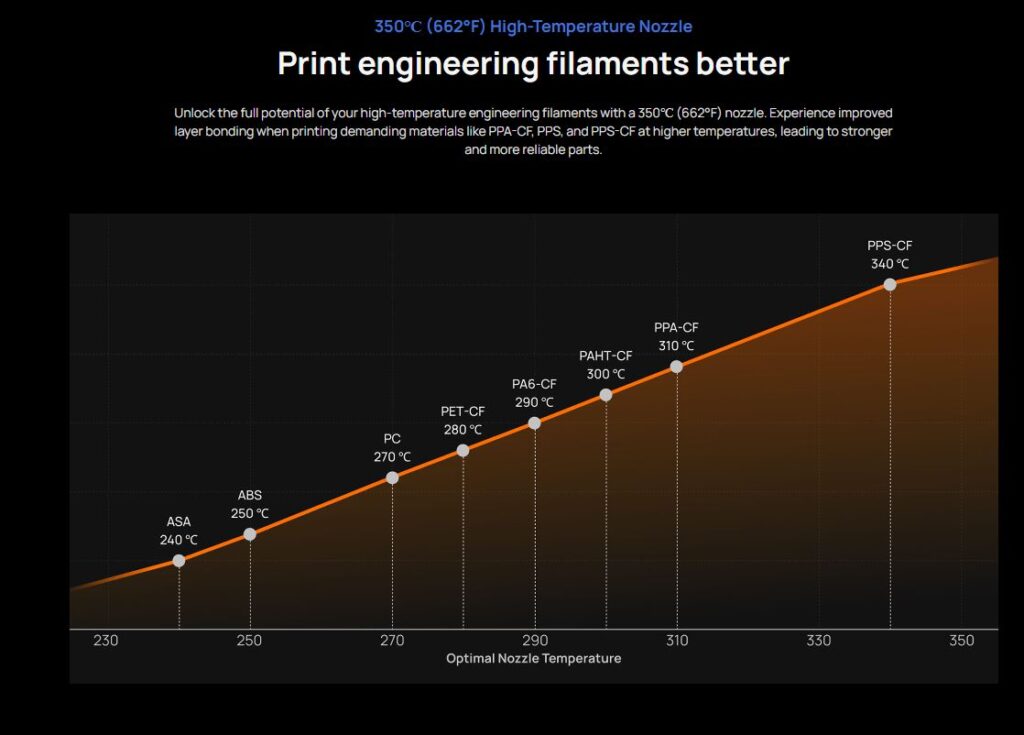

| Max Nozzle Temperature | 350 ℃ |
| Included Nozzle Diameter | 0.4 mm |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm |
| Filament Cutter | Built-in |
| Filament Diameter | 1.75 mm |
| Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor |
Heatbed
| Supported Build Plate Type | Textured PEI plate, Smooth PEI Plate |
| Max Heatbed Temperature | 120 ℃ |
Speed
| Max Speed of Toolhead | 1000 mm/s |
| Max Acceleration of Toolhead | 20,000 mm/s² |
| Max Flow for Hotend (Standard Flow Hotend) | 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature) |
| Max Flow for Hotend (Optional High Flow Hotend) | 65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 ℃ printing temperature) |
Chamber Temperature Control
| Active Chamber Heating | Supported |
| Max Temperature | 65 ℃ |
Air Purification
| Pre-filter Grade | G3 |
| HEPA Filter Grade | H12 |
| Activated Carbon Filter Type | Granulated Coconut Shell |
| VOC Filtration | Superior |
| Particulate Matter Filtration | Supported |
Cooling
| Part Cooling Fan | Closed Loop Control |
| Cooling Fan for Hotend | Closed Loop Control |
| Main Control Board Fan | Closed Loop Control |
| Chamber Exhaust Fan | Closed Loop Control |
| Chamber Heat Circulation Fan | Closed Loop Control |
| Auxiliary Part Cooling Fan | Closed Loop Control |
Filament Supported
| PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS; Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS |
Sensor
| Live View Camera | Built-in; 1920*1080 |
| Toolhead Camera | Built-in; 1600*1200 |
| BirdsEye Camera | Built-in; 3264*2448 (Equipped with Laser Edition) |
| Door Sensor | Supported |
| Filament Run Out Sensor | Supported |
| Filament Tangle Sensor | Supported |
| Filament Odometry | Supported with AMS |
| Power Loss Recovery | Supported |
Electrical Requirements
| Voltage | 100–120 VAC / 200–240 VAC, 50/60 Hz |
| Max Power¹ | 2050 W@220 V / 1170 W@110 V |
Working Temperature
10 ℃-30 ℃
Electronics
| Touchscreen | 5-inch 720*1280 Touchscreen |
| Storage | Built-in 8 GB EMMC and USB Port |
| Control Interface | Touchscreen, mobile App, PC App |
| Neural Processing Unit | 2 TOPS |
Software
| Slicer | Bambu Studio Supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura, but certain advanced features may not be supported. |
| Supported Operating System | MacOS, Windows, Linux |
Wi-Fi
| Operating Frequency | 2412-2472 MHz (CE/FCC), 2400-2483.5 MHz (SRRC) 5150-5850 MHz |
| Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5 GHz Band1/2: <23 dBm (FCC/CE/SRRC/MIC) 5 GHz Band3: <30 dBm (CE); <24 dBm (FCC) 5 GHz Band4: <23 dBm (FCC/SRRC); <14 dBm (CE) |
| Wi-Fi Protocol | IEEE 802.11 a/b/g/n |
10W Laser Module
| Laser Type | Semiconductor Laser |
| Laser Wavelength | Engraving Laser: 455 nm ± 5 nm Blue Light Height Measuring Laser: 850 nm ± 5 nm Infrared Light |
| Laser Power | 10 W ± 1 W |
| Laser Spot Dimension | 0.03 * 0.14 mm² |
| Working Temperature | 0 ℃–35 ℃ |
| Max Engraving Speed | 400 mm/s |
| Max Cutting Thickness | 5 mm (Basswood Plywood) |
| Laser Safety Class for Laser Module | Class 4 |
| Overall Laser Safety Class² | Class 1 |
| Engraving Area | H2D: 310 * 270 mm² H2S: 310 * 260 mm² |
| XY Positioning Method | Visual Positioning |
| XY Positioning Accuracy | < 0.3 mm |
| Z Height Measuring Method | Micro Lidar |
| Z Height Measuring Accuracy | ± 0.1 mm |
| Flame Detection | Supported |
| Temperature Detection | Supported |
| Door Sensor | Supported |
| Laser Module Installation Detection | Supported |
| Safety Key | Included |
| Air Pump | Built-in; 30 kPa, 30 L/min |
| Ventilation Pipe Adapter Outer Diameter | 100 mm |
| Supported Material Type | Wood, rubber, metal sheet, leather, dark acrylic, stone, and more |
Cutting Module
| Cutting Area | H2D：300*285 mm² H2S：297.5*300 mm² |
| Drawing Area | 300*255 mm² |
| Supported Pen Diameter | 10.5 mm–12.5 mm |
| Cutting Mat Type | LightGrip and StrongGrip Cutting Mats |
| Blade Type | 45°*0.35 mm |
| Blade Pressure Range | 50 gf–600 gf |
| Max Cutting Thickness | 0.5 mm |
| Blade and Pen Recognition | Supported |
| Cutting Mat Type Detection | Supported |
| Supported Image Type | Bitmap and Vector Images |
| Supported Material Type | Paper, PVC, vinyl, leather, and more |
