Description
The Creality brand is well known to all the 3D printing fans around to world as one of the pioneers in the category. But the 3D printers are not the only items in their portfolio. Recently they have expanded with nifty laser engravers models and a new one is about to hit the market today. The Creality CR-Laser Falcon 10W is featuring some very advanced specs and you can of course take part in some nice launch benefits as well.

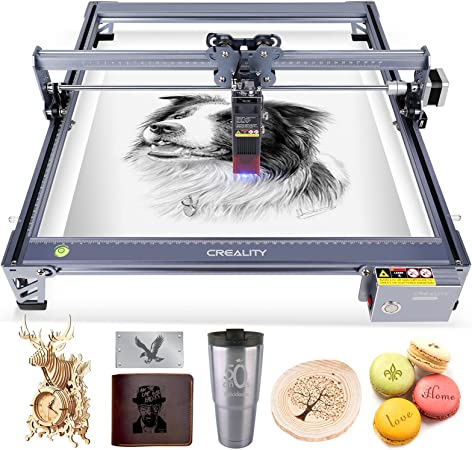

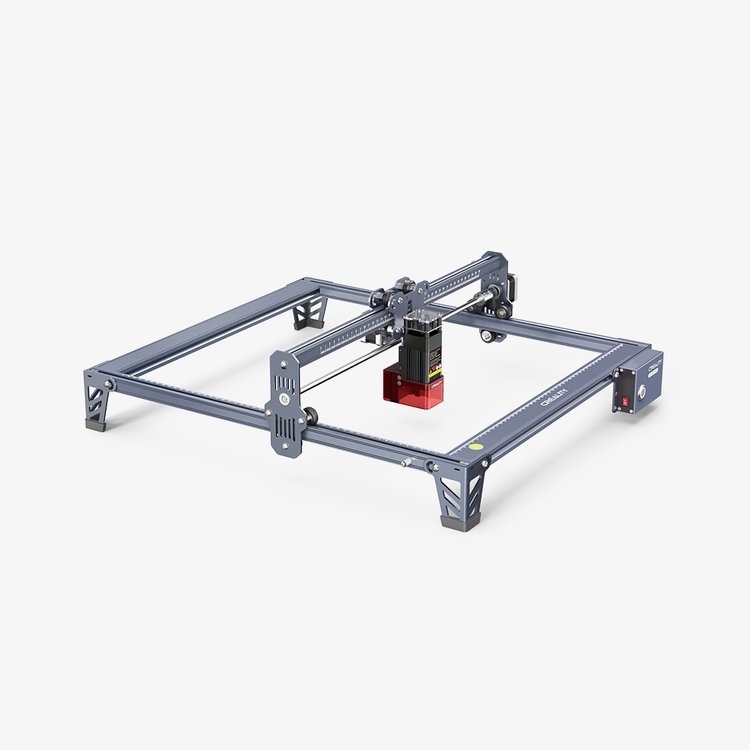

Creality CR-Laser Falcon 10W is an upgraded version of the original 5W model, introduced back in April. The new laser module brings stronger engraving and cutting performance all around. With 0.06mm of precision you can flesh out all the details nicely, thanks to the advanced LD+FAC+C-Lens technology. And cutting up to 12mm thick wood boards is nothing to scoff at either and it’s not scared of some other materials like acrylic or even stainless steel as well. With big 400 x 415mm work area you have plenty of flexibility too.

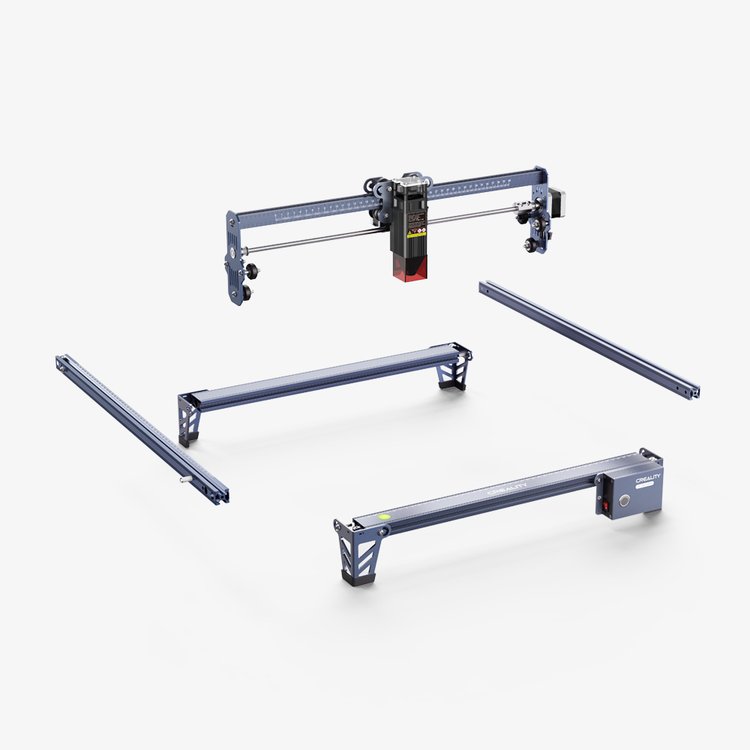

There are some extra perks available for the machine, which are not usually the norm in this price range. Like built-in leveller, measuring scale on the axis profiles or multi-level fixed focus block. And thanks to usage of the 3D core tech from their Ender 3D printer series it’s an even better machine. It boasts stable and robust build with an 8mm shaft, 4 durable Y-shaped motion wheels for smooth motion or 32-bit silent mainboard for stable and smooth operation.
EASY CONTROLS AND RICH SAFETY FEATURES

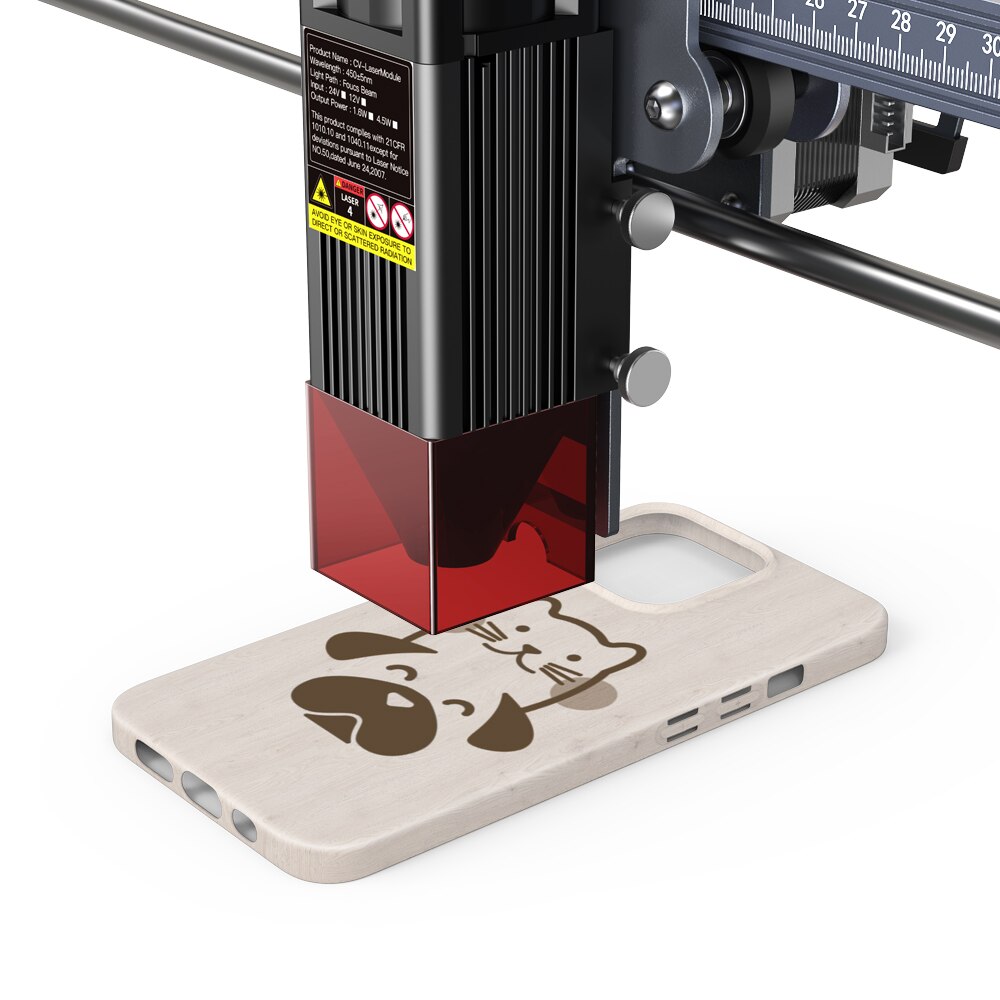

Controls are another strong part of Creality CR-Laser Falcon 10W, because of its ease. You can operate it with just simple press of one button and thanks to offline working mode with TF card you don’t need a computer at all. Focusing of the machine is quite easy as well and can be done in 3 simple steps. And new CR-Laser Falcon also features some advanced safety protections. Like the protective cover around the laser head, gyroscope, buzzer or an indicator for stopping the machines in case of accidental tilt, flip or drop.
SPECIFICATIONS
| OUTPUT POWER | TRUE 10W |
| ENGRAVING AREA | 400*400mm |
| ENGRAVING SPEED | 20000mm/min |
| MACHINE SIZE | 580*550*150mm |
| SPOT SIZE | 0.05*0.1mm |
| LASER WAVELENGTH | 455±5nm |
| MOTHER BOARD | OLM-ESP-PRO-V2.4 |
| MOTOR | ►42X60 Y Stepper Motor►42X40 X Stepper Motor |
| PRODUCT MATERIALS | 70% Aluminum + 15% Steel + 5% Plastic + 5% Brass + 5% Others |
| CONTROL SOFTWARE | LaserGRBL/LightBurn/Laser Explorer |
