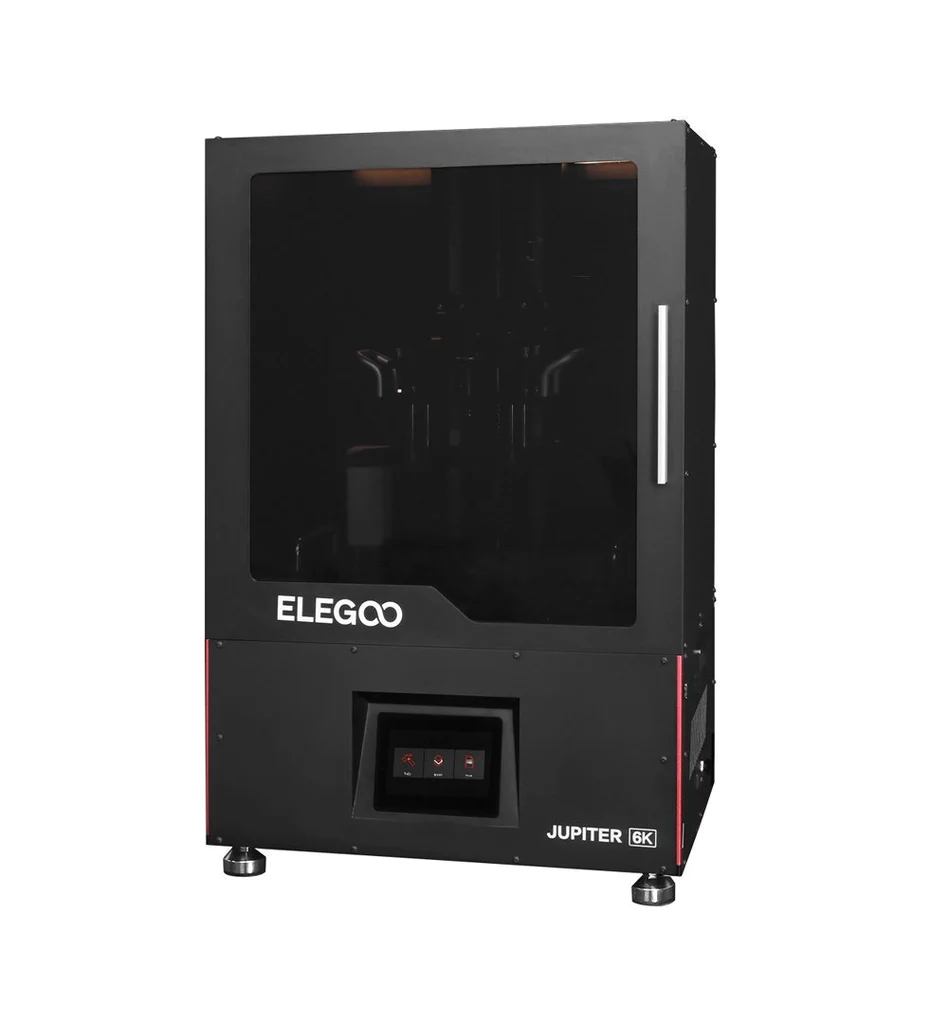

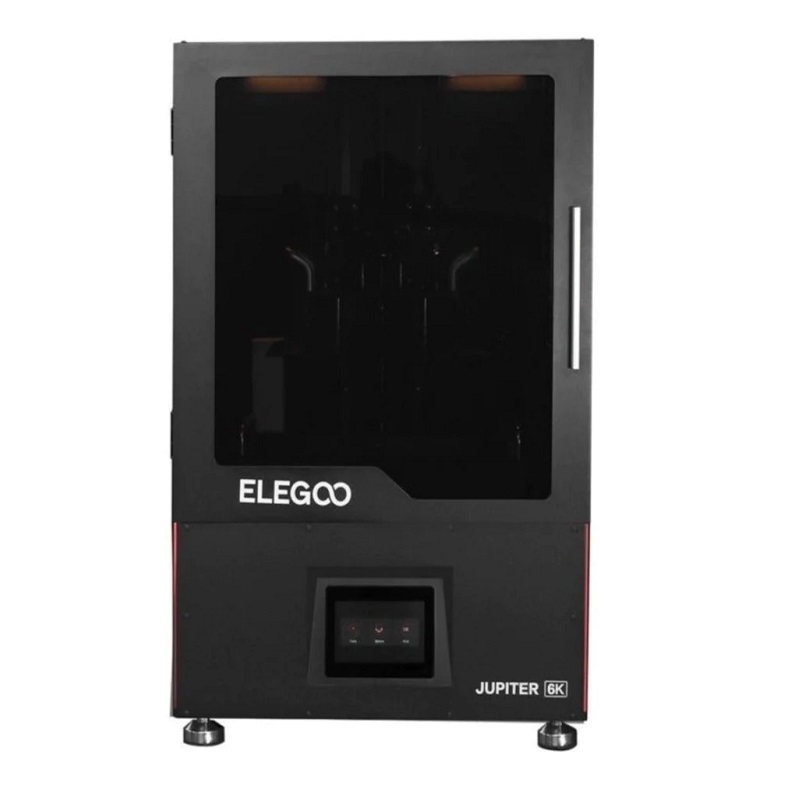

Elegoo Jupiter 6K Resin 3D printer

99,499.00

The Elegoo Jupiter provides large build volume and high quality output at a premium price that’s reasonable for its size.

Category:
25 people are viewing this product

Description

1)Big volume + High detail precision

Jupiter used a 12.8″ 6K LCD screen, with the higher resolution on the 6k LCD, you can expect an even higher model quality than you normally get on resin printers, as the pixel density will reduce the square edges that can sometimes occur on lower-resolution printers. The high pixel density has been designed to create high-resolution models, while the large size of the masking LCD gives users the ability to print large models, multiple small models, or anything in between.



2) All-metal structure

The whole body and major components are all made of high-strength metal. For example, the body used sheet metal for high strength; the material is resistant to aging and is not easily scratched. The handles and other components places are made of aluminum alloy shells, making Jupiter more fashionable and lighter.



3)5-inch capacitive touch screen

The 5.0″ capacitive screen makes Jupiter easy to view and touch. The UI interface designed for capacitive and straightforward screen operation does not delay or freeze, with various language supports, bringing a brand new user experience.

1) Automatic resin feeding

That’s right! We are building automatic resin tank feeding into Jupiter! The well-designed automatic resin tank feeding inlet provides a resin backup whenever needed during the length of your print. This means you don’t have to worry about running out of resin mid-print! Our technology will automatically supply resin when the resin gets too low.



2)Ball screw

The Z-axis adopts a high-quality ball screw for smooth and durable operation, and the whole printing process is quiet and silent compared to other printers (within 60dB). We use four sliders design, which can effectively increase Z-axis stability and reduce the phenomenon of Z-axis “nodding” during the printing process. Its high positioning accuracy facilitates ultra-high precision printing. Most importantly, its lifespan is longer than the ordinary screw.



3)COB light source

Equipped with a powerful internal COB light source, with high light utilization and light power. Using a high-density integrated LED, the light distribution is uniform, and the screen does not produce any light spots, helping to better print results. This powerful LED light source results in high-resolution prints that are accurate to the original 3D model.



4)Built-in mini air purifier

Jupiter can be equipped with a mini air purifier, activated carbon can absorb and filter the irritant resin odor before they are ventilated throughout the cooling fan at a super adsorption rate, which gives you a fresh and safe user experience.



5)CHITUBOX System

Jupiter comes with a one-year CHITUBOX Pro license(Reg.$169) for FREE. CHITUBOX core supports mainstream CAD File Formats. Versatile editing tools. Professional model repair toolset. Smart supports adding. Fast model slicing. Also compatible with CHITUBOX Basic and other third-party slicers.

1)Built-in LED lighting

The touch screen controls the lighting switch, the diffused light source ensures uniform and soft light, eliminates dark areas, is closer to nature, and cares for your eyes. The lighting uses LED patches, which have a long service life.



2)Easy to assemble and upgrade

The outer casing, Mono screen, and Z-axis modular can all be disassembled and assembled. Then you can easily upgrade the Jupiter with the expansion kits(you can increase the height of the Z-axis to 500mm for example). It’s also a chance that you can assemble a resin printer by yourself. As the owner of Jupiter, you can complete the assembly in 30 minutes, enjoy the process and fun of constructing Jupiter, and enhance users’ creativity.



3)User-friendly Design

The Jupiter is a large printer and our engineers have added handles on both sides of Jupiter’s shell to make it easier and safer to move. We have additionally added handles to the resin tank and doors to make the operation of this printer a breeze. The build plate uses a quick turning lock to fix it in place instead of screws used by other Elegoo Resin 3D Printers allowing for easier use.

  • Build Volume: 277 x 156 x 300 mm
  • Technology: MSLA
  • Layer Height: 10 microns
  • XY Resolution:  51 microns (5448 x 3064 pixels)
  • Z-axis positioning accuracy: 0.00125 mm
  • Printing Speed: 30-70 mm/h
  • Bed-Leveling: Manual
  • Display: 5-inch touchscreen
  • Third-Party Materials: Yes
  • Materials: 405 nm UV resin
