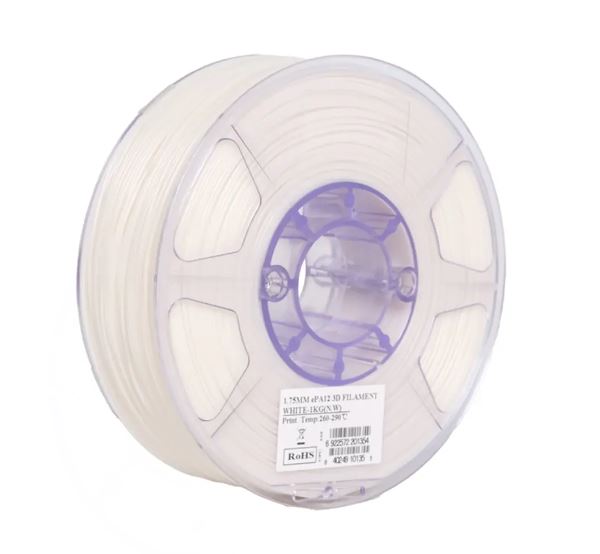

eSun ePA12 1.75mm 3D Printing Filament 1kg-White (NYLON)

6,200.00

Description

Developed based on PA12; low water absorption, the size of printed parts is less affected by humidity and temperature. ePA12 has high toughness, high impact resistance, and can be used to print durable parts; it has up to 165% elongation at break and excellent fatigue resistance; self-lubricating wear resistance, can print mechanical gears; high temperature resistance, thermal deformation The temperature is 100℃, can be used for temperature-resistant parts; low shrinkage, not easy to warp and crack during printing.

Sellingpoint

Low moisture absorption
Heat resistance
High toughness
High impact resistance
Abrasion resistance
High dimensional stability
Excellent printability

Categories: , Tags: , , , , , ,
25 people are viewing this product

Description

ePA12

Developed based on PA12; low water absorption, the size of printed parts is less affected by humidity and temperature. ePA12 has high toughness, high impact resistance, and can be used to print durable parts; it has up to 165% elongation at break and excellent fatigue resistance; self-lubricating wear resistance, can print mechanical gears; high temperature resistance, thermal deformation The temperature is 100℃, can be used for temperature-resistant parts; low shrinkage, not easy to warp and crack during printing.

Filament Properties Table
3D PRINTING FILAMENT ePA12
Density(g/cm3) 1.012
Heat Distortion Temp(℃,0.45MPa) 100
Melt Flow Index(g/10min) 55.64(270℃/2.16kg)
Tensile Strength(MPa) 50.81
Elongation at Break(%) 165.41
Flexural Strength(MPa) 47.27
Flexural Modulus(MPa) 659.49
IZOD Impact Strength(kJ/㎡) 10.14
Durability 10/10
Printability 8/10
Recommended printing parameters
Extruder Temperature(℃) 260 – 290℃
Recommended temperature:280℃
Bed temperature(℃)  70 – 90°C
Fan Speed  0%
Printing Speed  40 – 100mm/s
Heated Bed  Required
Recommended Build Surfaces Solid glue, PEI
Feature
Flexible
Elastic ——
Impact Resistant
Soft ——
Composite ——
 UV Resistant ——
Water Resistant ——
Dissolvable ——
Heat Resistant
Chemically Resistant ——
Fatigue Resistant
Need drying
Heated Bed Required
Print recommend Drying at 70℃/>12h



Notes:

ePA12 needs to be dried (70℃/>12H) before printing to achieve the best printing effect. It is recommended to use it with the eBOX cartridge when printing.
