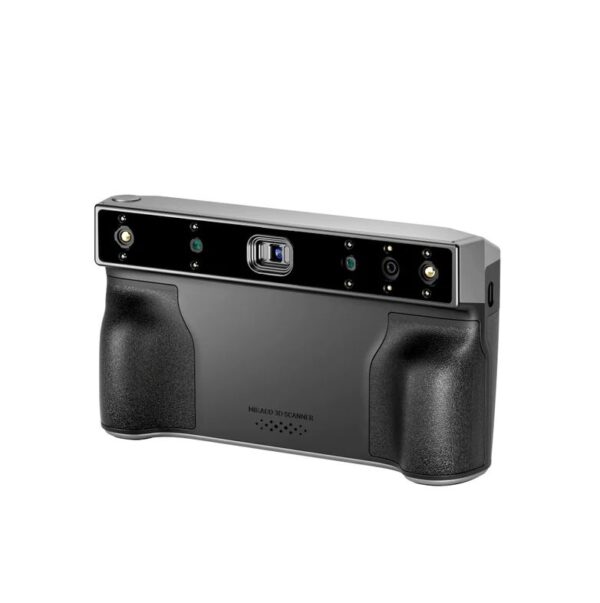

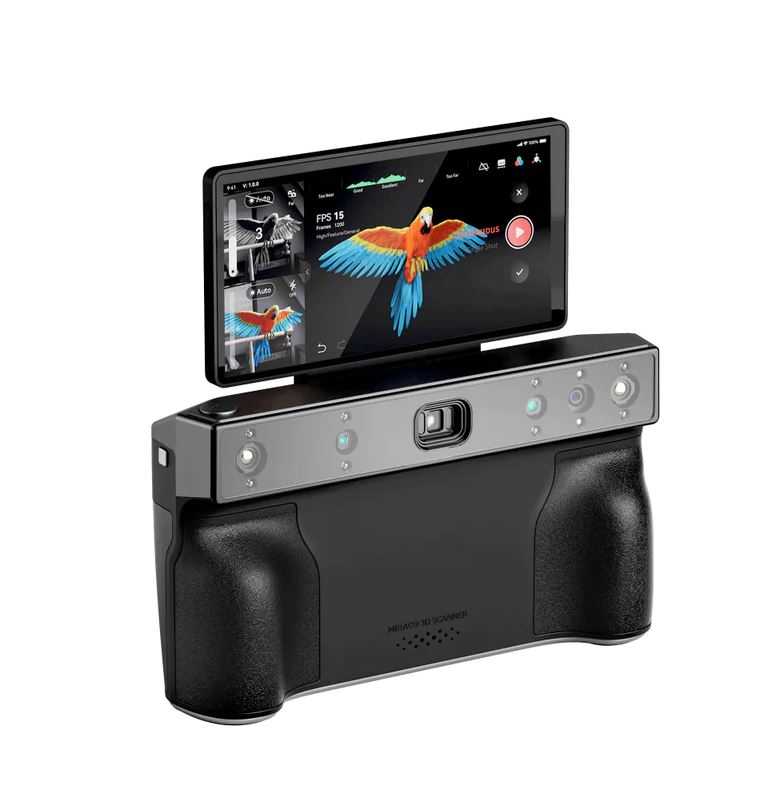

Revopoint MIRACO 3d Scanner

249,999.00

  • Big and Small Object Scanning
  • Single-shot & Continuous Modes
  • Up to 0.02 mm precision, 0.05 mm accuracy
  • 48 Megapixel RGB Camera
  • Up to 2 hours of Scanning

Specifications:

Product Name: Revopoint MIRACO

Technology: Quad-camera Infrared Structured Light

Single-frame Accuracy: up to 0.05 mm

Fused Point Distance, up to 0.05 mm

Single Capture Area at Nearest Distance: 28 x 53 mm at 100 mm

Single Capture Area at Furthest Distance: 975 x 775 mm at 1000 mm

Two Capture Modes: Single-shot Mode , Continuous Capture Mode

Scanning Speed,up to 15 fps

Minimum Scan Volume: 10 x 10 x 10 mm

Maxmium Scan Volume: 4000 x 4000 x 4000 mm

Working Distance: 100 – 1000 mm

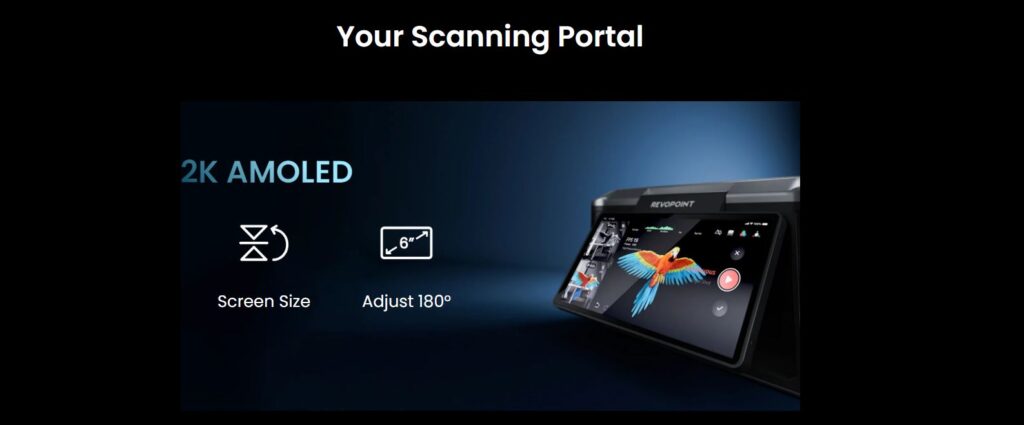

Screen: 6” 2k AMOLED Touch Screen

Auxiliary Lighting: Infrared Fill Lights, Flash LEDs

3D Light Source: Class 1 Infrared Light

Storage: 256 GB eMMC

Position Sensors: 9-axis IMU

Memory (RAM): 16 GB or 32 GB DDR4 (32GB only in MIRACO Pro)

RGB Camera Resolution,up to 48 Megapixels

Scanner Weight: 750 g

Dimensions(L x W x H): 200 x 50 x 110 mm

Battery Capacity: Internal lithium Battery 5,000 mAh, supporting up to 2-hour continuous scanning

CPU: 8-core CPU,2.4 GHz

Tracking Methods: Feature , Marker

Protection Rating: IP45

Connector Type: USB Type-C

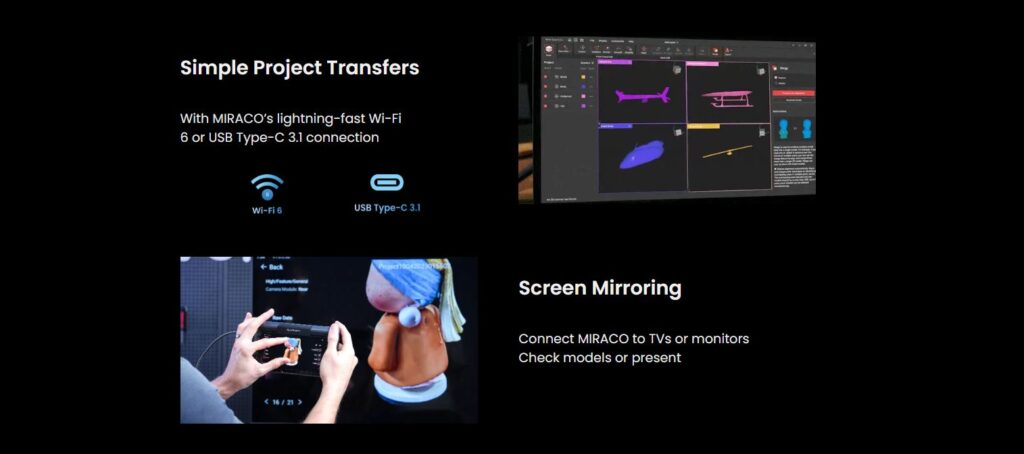

Wi-Fi Type: Wi-Fi 6

Compatible Systems: Windows 10/11 (64-bit), macOS

Operating System: Native Android System

Special Object Scanning: Use scanning spray for transparent, dark, or highly reflective objects.

Scanning Environment: Indoors and Outdoors

Output Formats: PLY, OBJ, and STL

3D Printing Compatible: Yes

Category: Tags: , , , , , , ,
33 people are viewing this product

Description

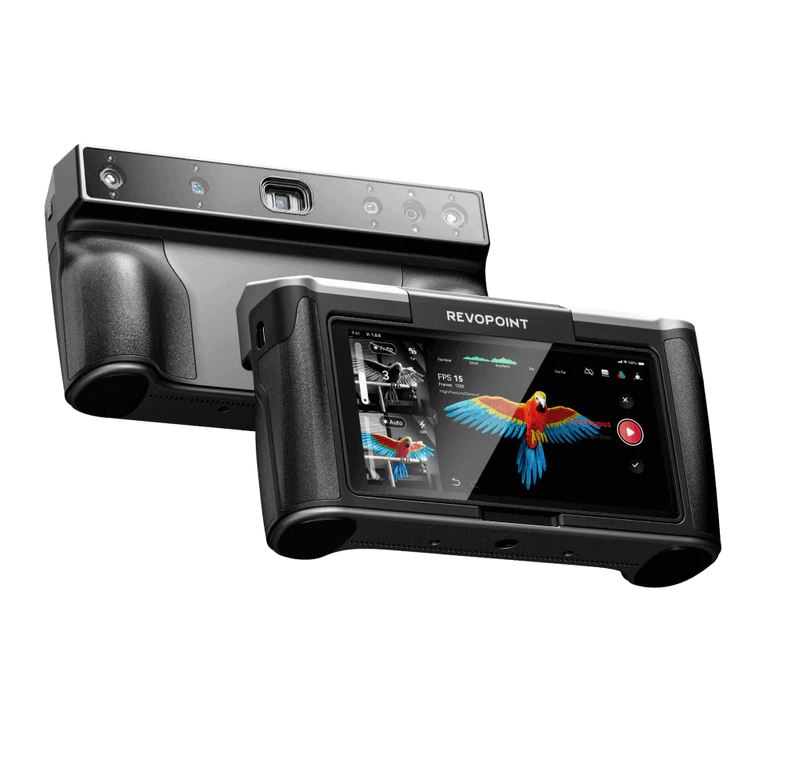

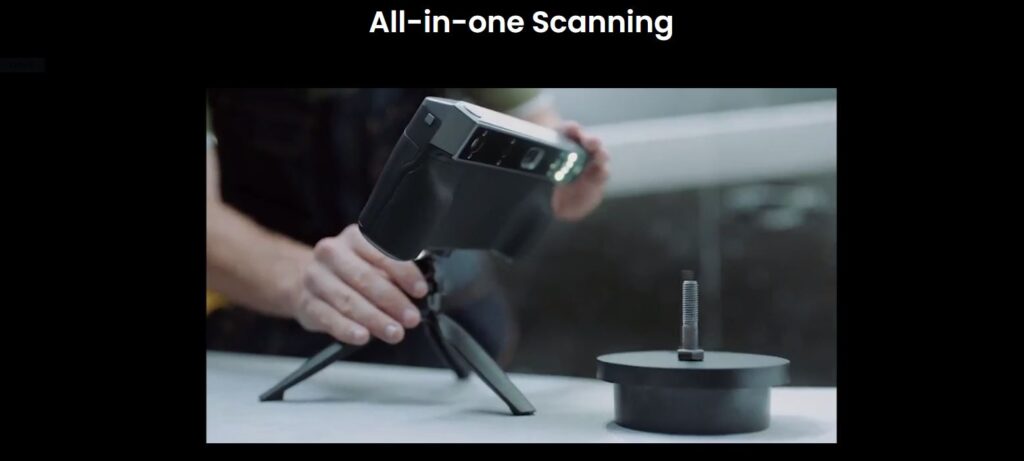

Revopoint MIRACO – Standalone 3D Scanner for Small to Large Objects Scanner



Introducing our first standalone 3D scanner, the Revopoint MIRACO. It’s ready to support all your professional scanning needs. Whether you want to capture small or large items, its quad-Depth Camera system can do it all.
