Description
Key Features
- Strong & Durable
- Impact & Scratch Resistant
- Precise Diameter ±0.03 mm
- Wide Compatibility

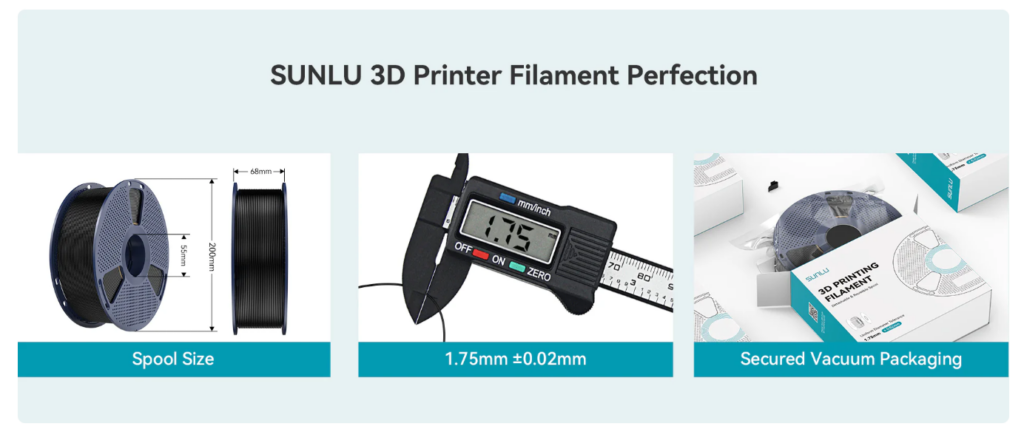

Diameter: 1.75 ± 0.03 mm
Printing Temperature:
- 250–260℃: 50–100 mm/s
- 260–280℃: 100–200 mm/s
Bed Temperature:
- 80–100℃ (with enclosed heated chamber)
Printing Speed: 40–60 mm/s
Net Weight: 1 kg/spool
Gross Weight: 1.3 kg/spool
Length: 1.75 mm (1 kg) = 395 m
| Recommended Printing Settings | |
|---|---|
| Drying Settings (Blast Drying Oven) | 50 °C |
| Printing and Keeping Container’s Humidity | < 20% RH (Sealed, with Desiccant) |
| Nozzle Temperature | 250 – 260 °C: 50–100 mm/s 260 – 280 °C: 100–300 mm/s |
| Bed Temperature (with Glue) | 80 – 100 °C |
| Printing Speed | 50 – 100 mm/s / 100 – 200 mm/s |
| Physical Properties | |
|---|---|
| Density | 1.02 g/cm³ |
| Vicat Softening Temperature | 86 °C |
| Heat Deflection Temperature | 95 °C |
| Melting Temperature | 132 °C |
| Melt Index | 15 g/10 min |
| Mechanical Properties | |
|---|---|
| Tensile Strength | 42 MPa |
| Breaking Elongation Rate | 7.8% |
| Flexural Strength | 55 MPa |
| Flexural Modulus | 1829 MPa |
| Impact Strength | 25 kJ/m² |
