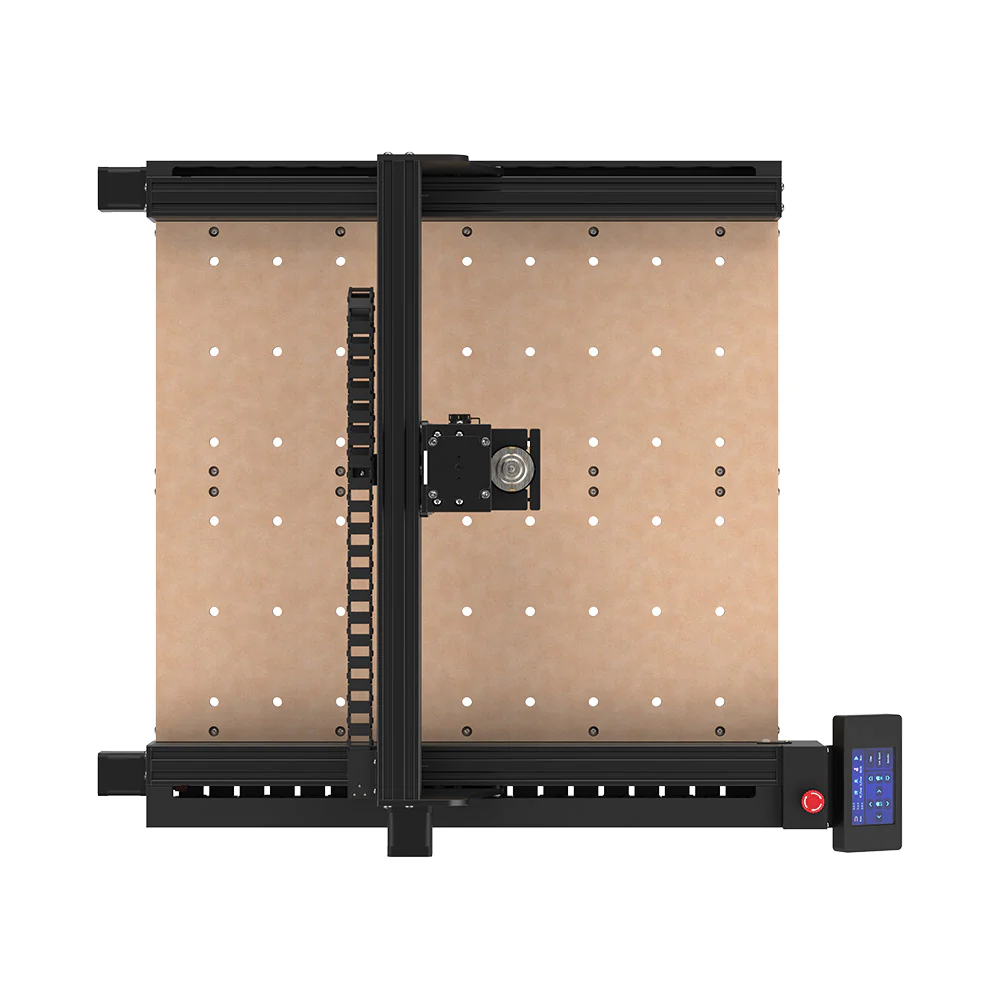

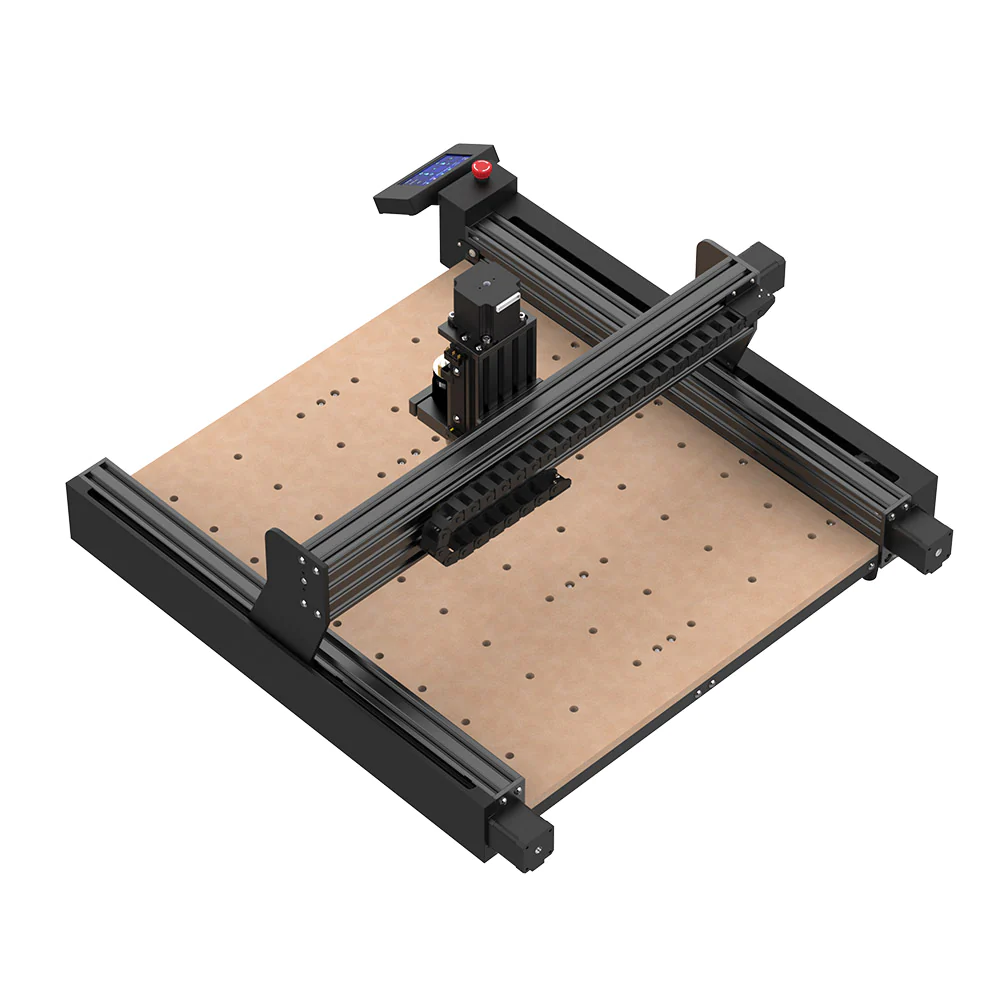

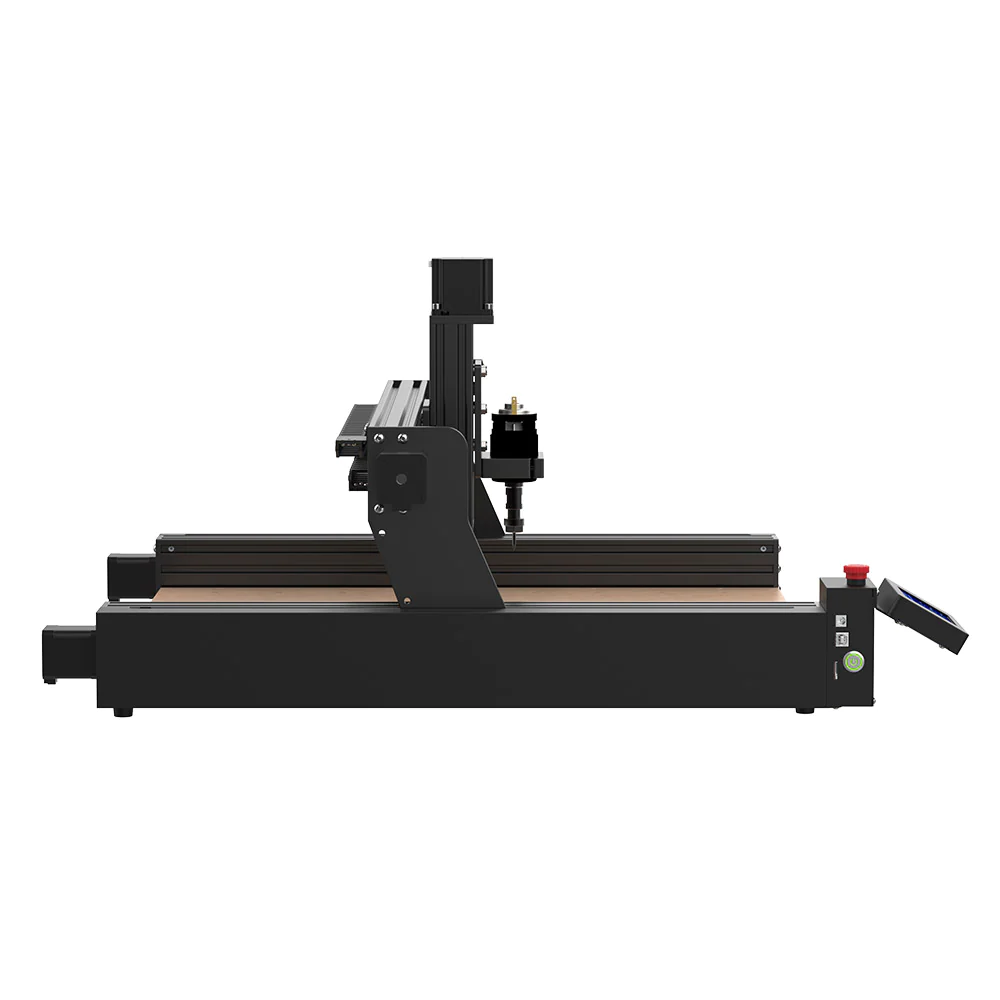

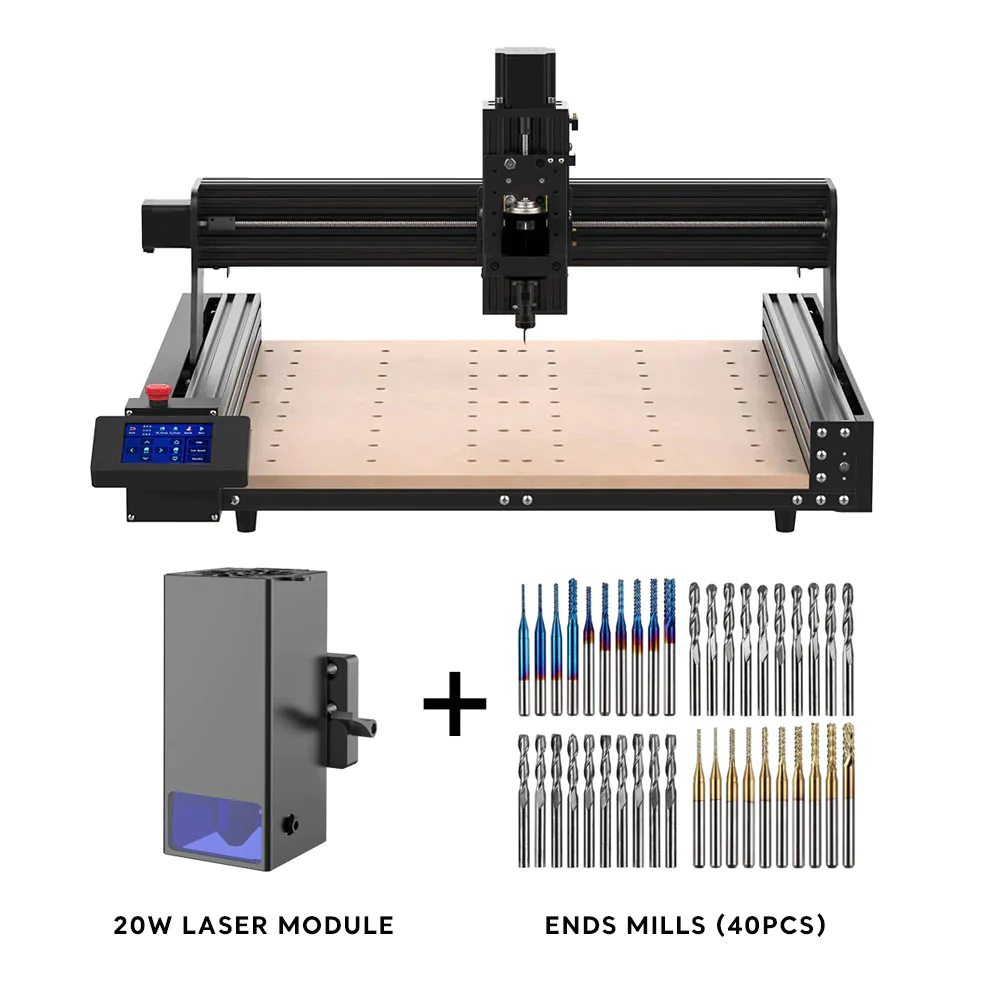

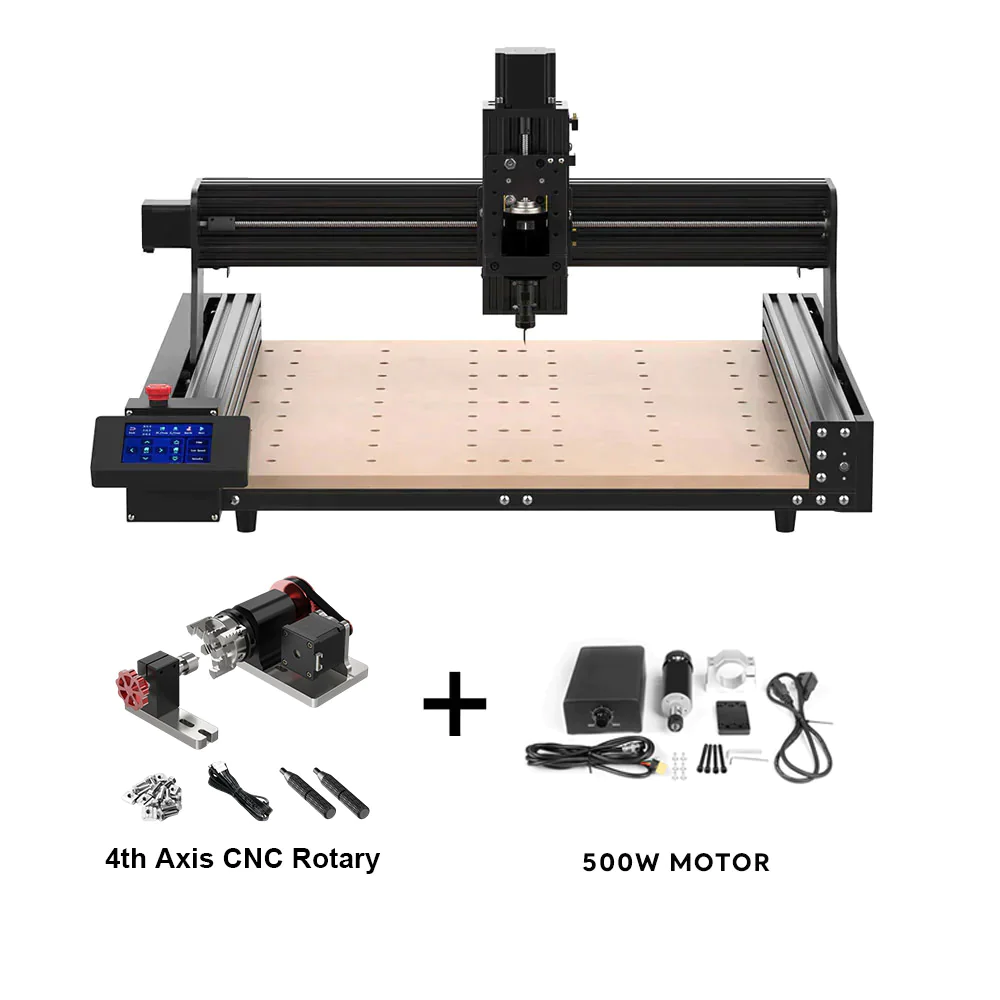

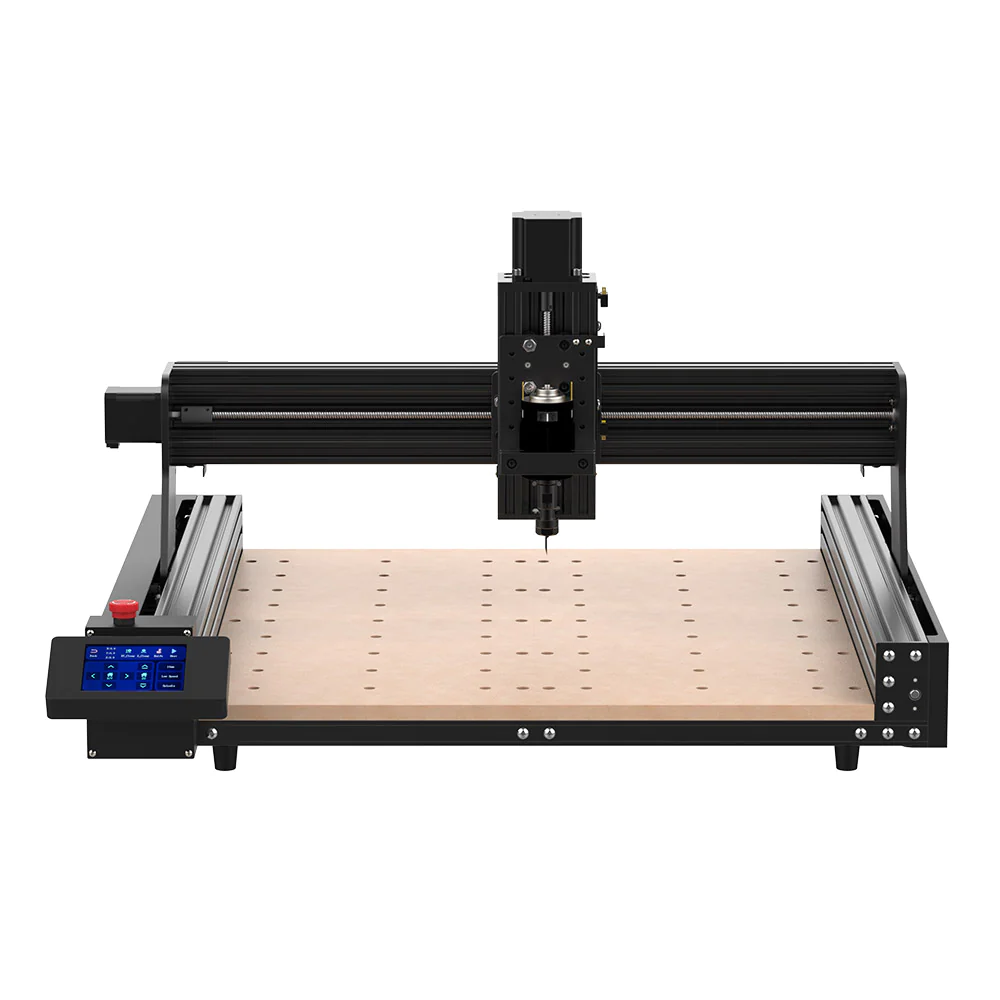

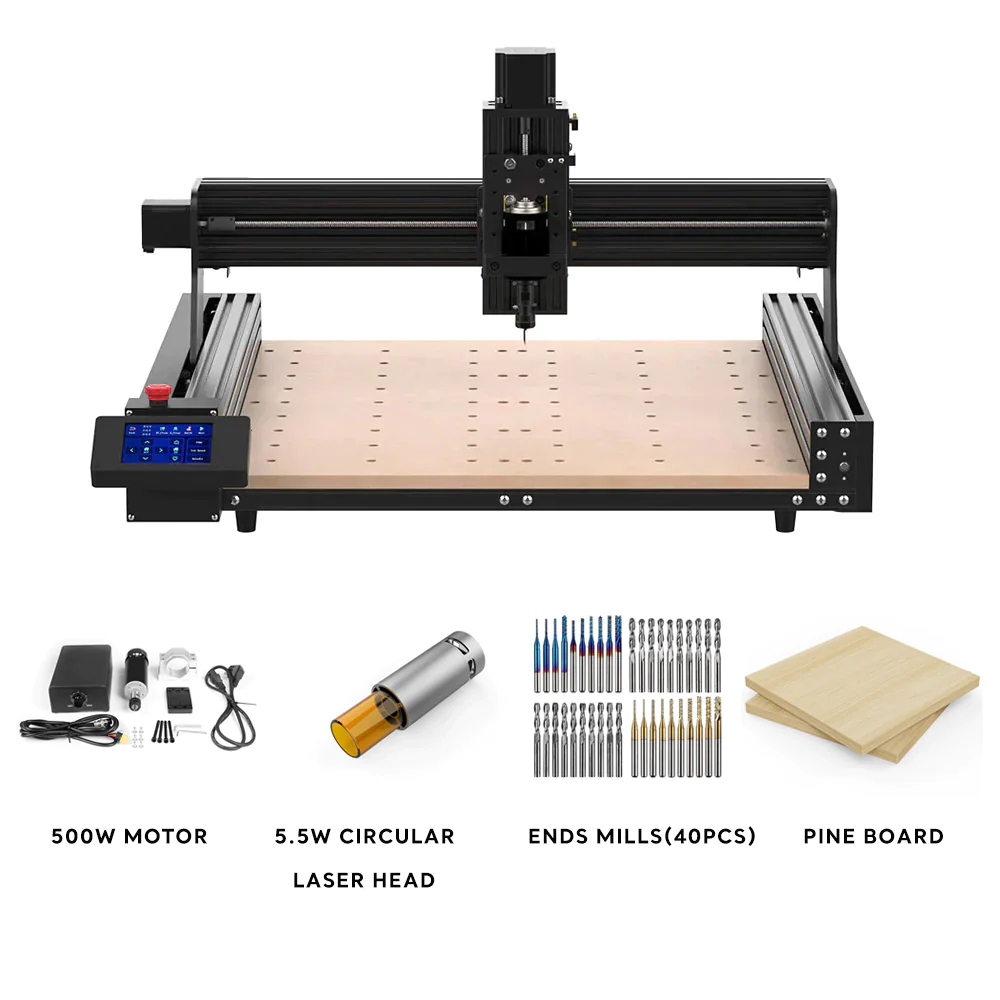

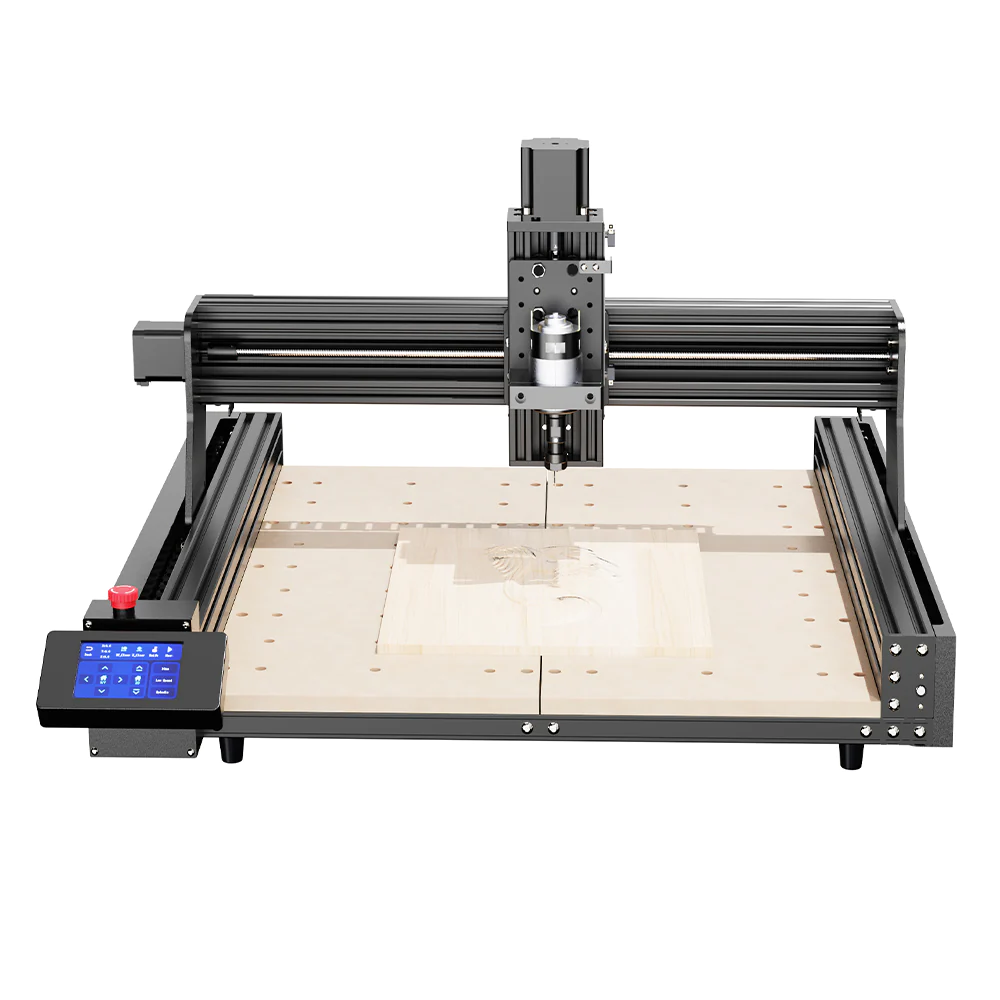

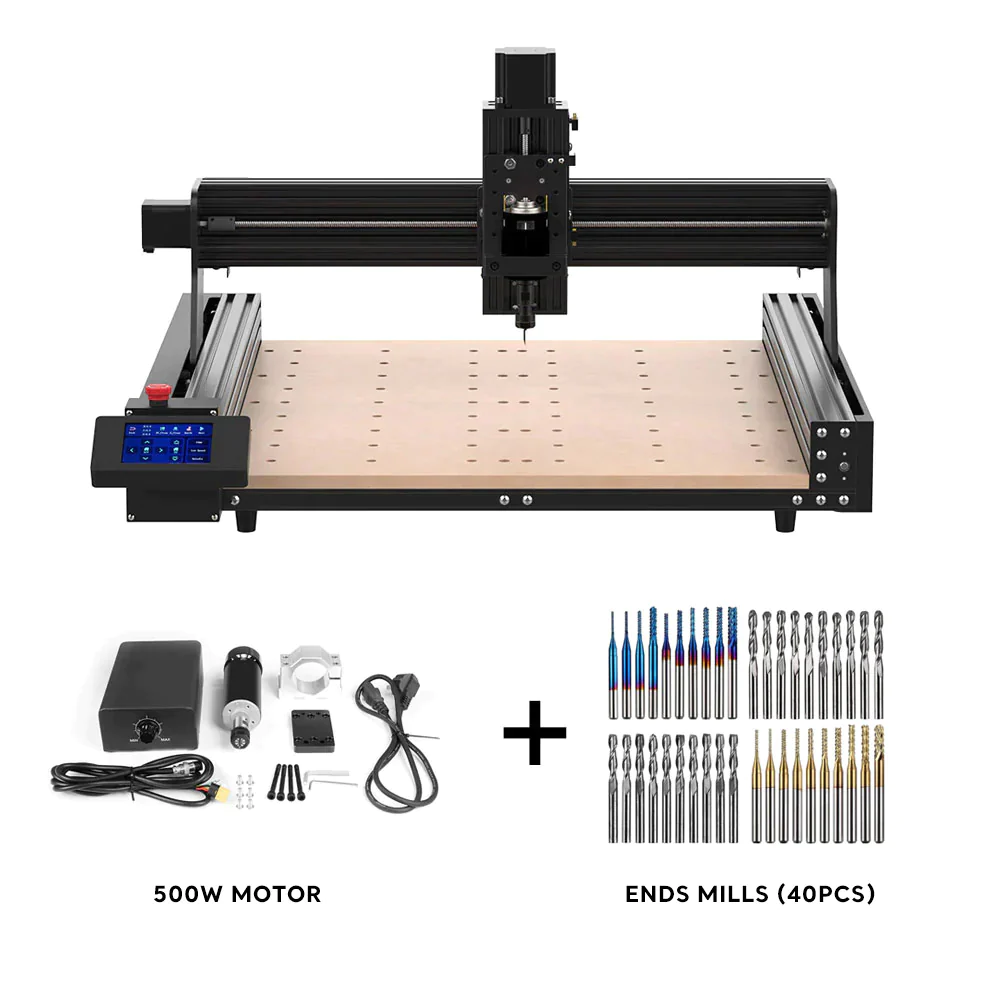

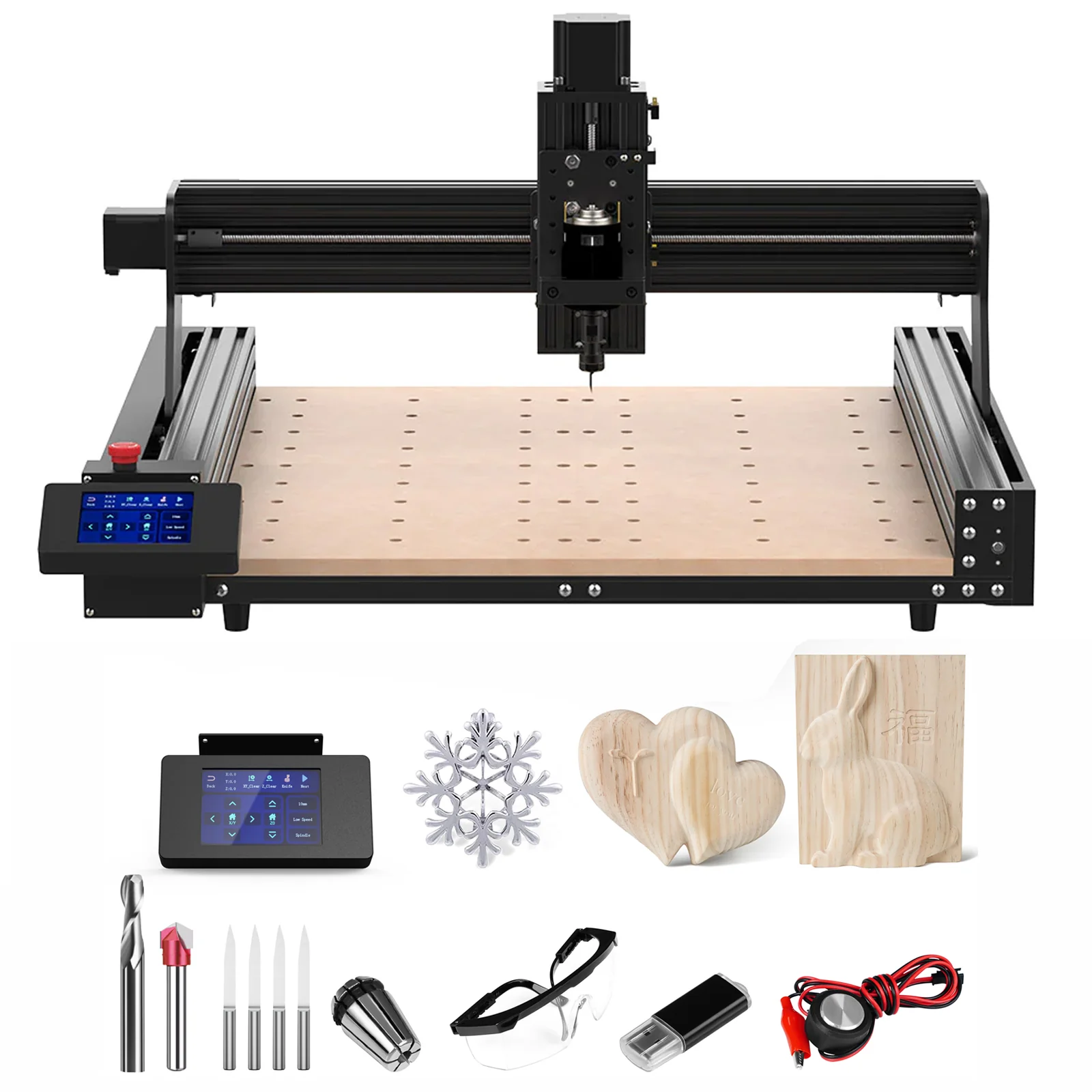

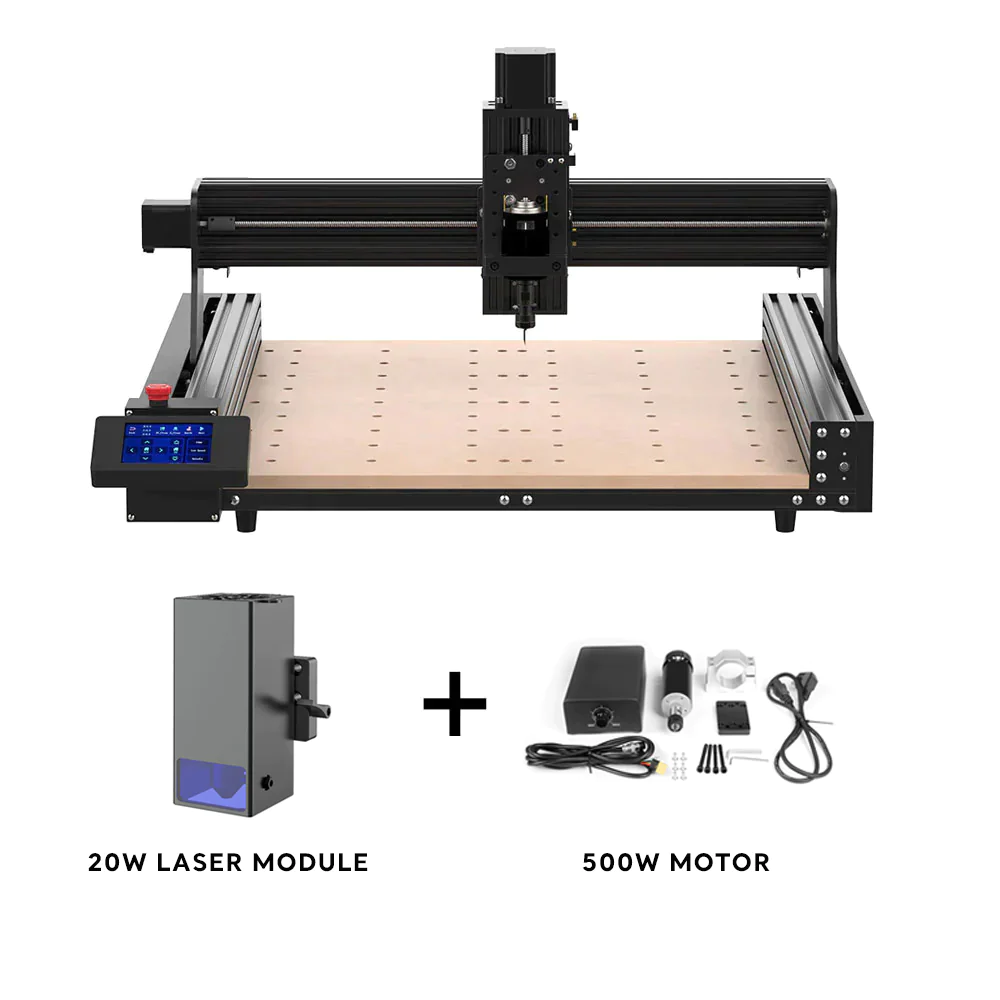

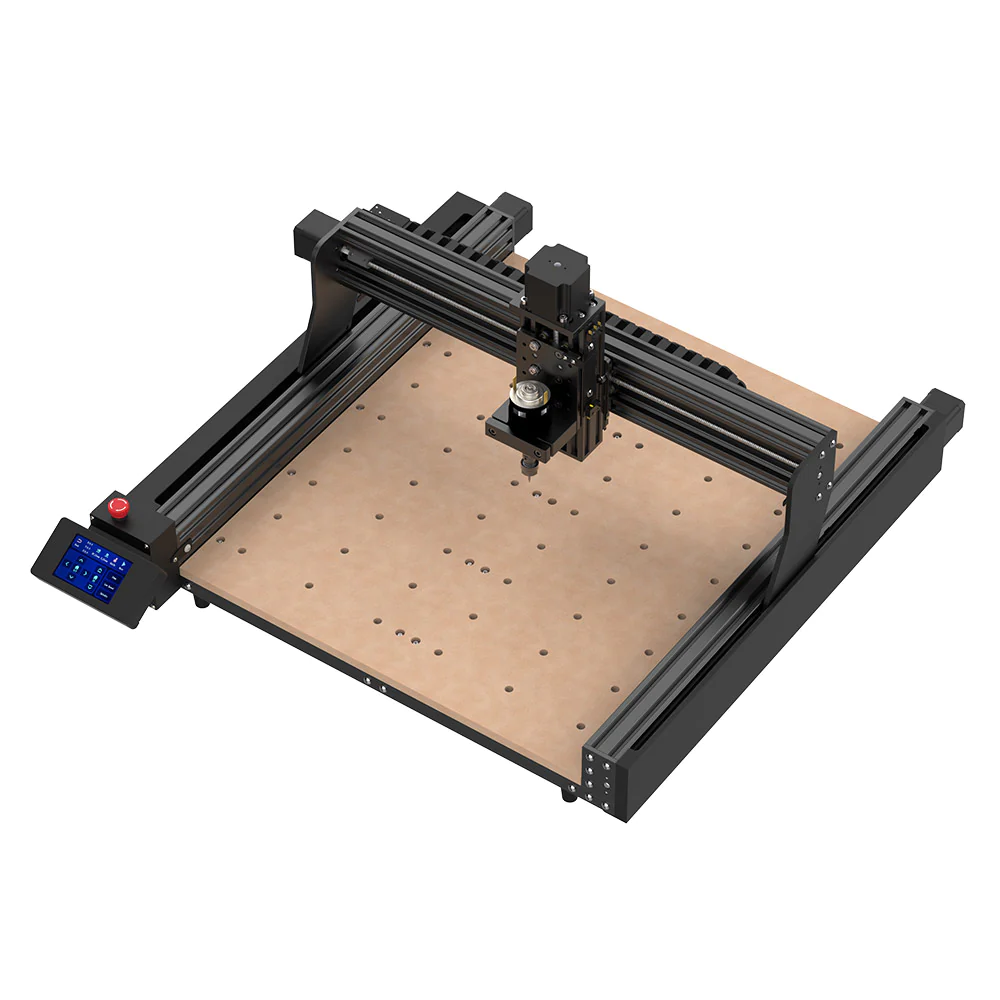

Two Trees TTC-450 CNC Router Machine

0.00

Tech Specs

Model No. TTC450
Color Black
Machine material Aluminum Profile + Plastic
Leadscrew Size & Type T8 2mm pitch, 4mm lead 5 start acme lead screw
Height adjustment method Lifting module adjustment (automatic)
Machine size 782*670*390mm
Engraving size 460*460*80mm
XY axis positioning accuracy 0.1mm
Stepper motor A4988, 1.3A / 17HS8401S, NEMA23 20mN.m
Engraving precision 0.01mm
Engraving speed 800mm/min

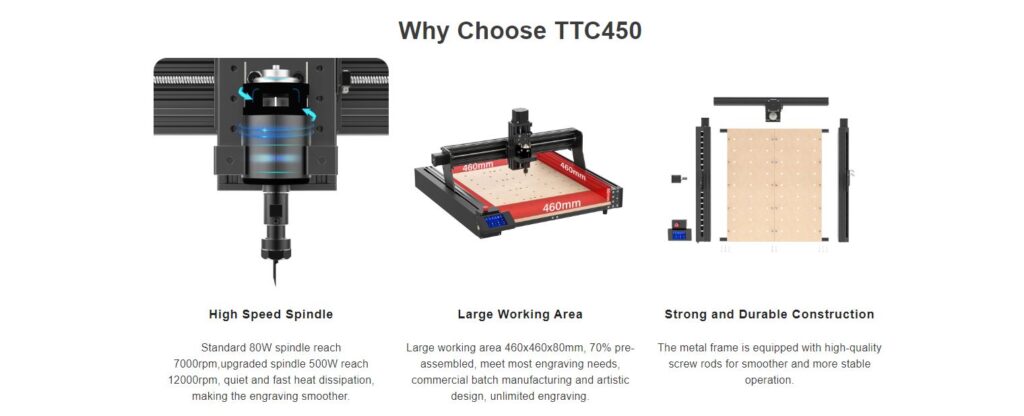

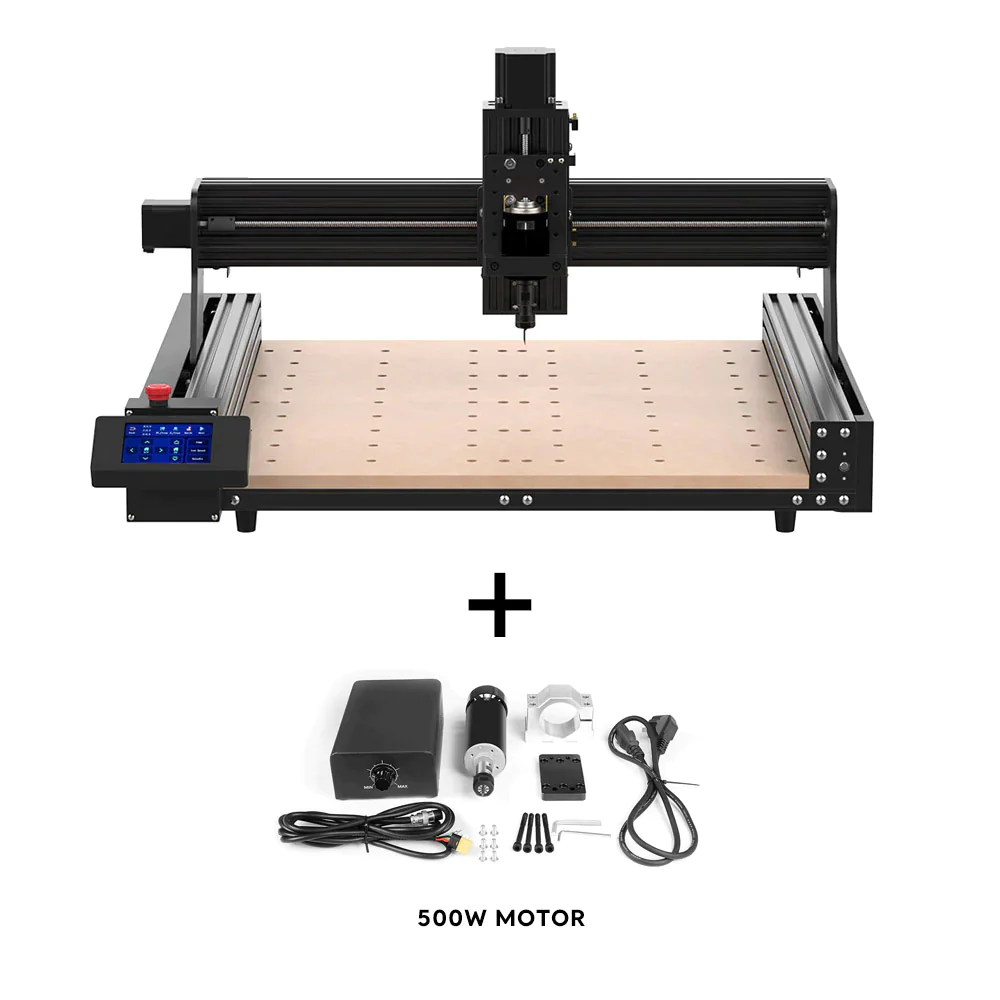

Spindle 80W,8000RPM/500W,12000RPM
Engraving method USB connection
Carving material Plastic, soft aluminum, wood, acrylic, PVC, PVB and other soft materials
Software recognition format NC, DXF, BMP, JPG, PNG, GCODE
Continuous working hours ≤6 hours
Engraving mode Graphic engraving, file engraving, scan engraving, contour engraving, pixel engraving
Control panel ESP32 32-bit main control board
language Chinese, English, Italian, French, German
Package Size 720*330*300mm
Package weight 20KG
Power Supply 24V 5A 120W
Operating System Windows, MAC
Support CAM Software Candle, Carveco, Artcam, Easel
Working Environment Temperature 5-40 degrees Celsius, humidity 20-60%RH
