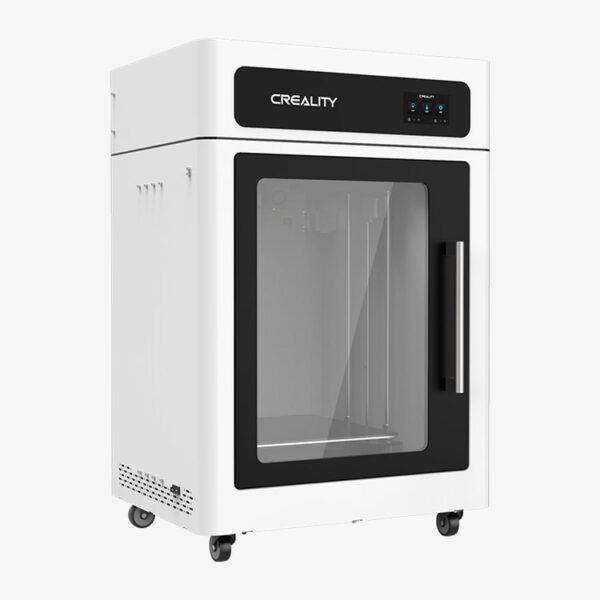

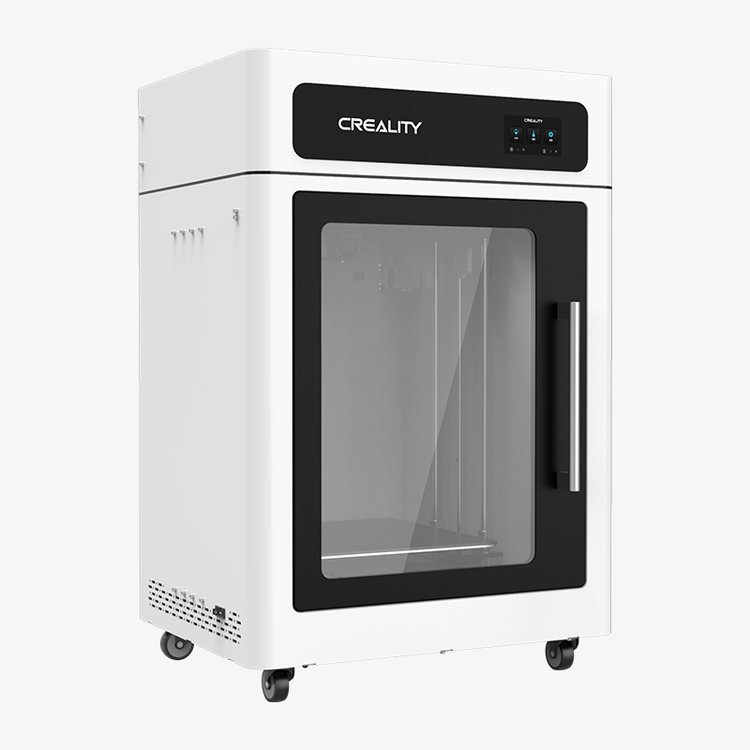

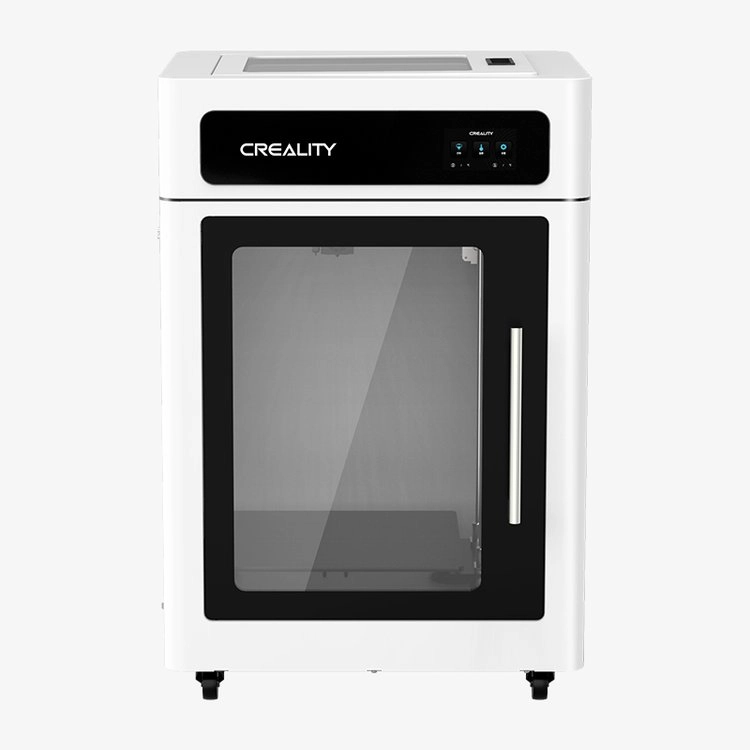

Creality CR3040 Pro


Creality CR-3040 Pro, New upgrade, and a high precision FDM 3d printer.

Highlights of the Creality CR-3040 Pro

  • High-Precision Mechanical Structure
  • Industrial Print Size
  • Double XY-axes and Double Z-axis screws
  • Brand-new print platform
  • New Nozzle Kit
  • Air purification system
  • LED Light/Real-time printing observation
22 people are viewing this product


CR-3040 Pro FDM 3D Printer Features

Creality CR-3040 Pro 3D printer is the new upgrade of CR-3040. Which is more innovative and higher performance. The print size is 300x300x400mm, with a new nozzle kit to make a high print precision.

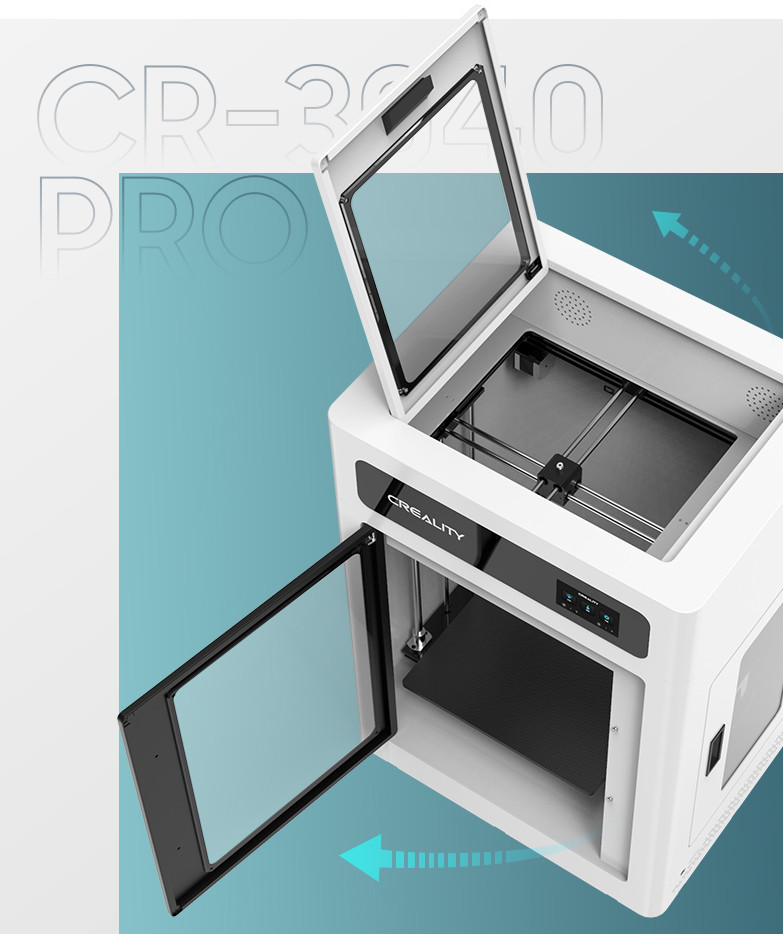

High-Precision Mechanical Structure

With the white and delicate appearance, full-closed structure and high bearing capacity ensure the constant temperature environment to print with high stability and precision.With the dual-door design, you can observe the printing process in all directions.

Industrial Print Size

Integrated machine with large printing volume meets your endless creativity. Print size:300x300x400mm

Double XY-axes and Double Z-axis screws

Double cross shaft with precise screw and positioning transmission ensures the print speeds and print stability.

Brand-new print platform

The hotbed temperature is up to 110℃ with even heating and high adhesion. The upgrade Carborundum glass platform is convenient to remove the model without warping.

New Nozzle Kit

Equipped with the new generation of the heat sink, the nozzle can cool down timely without plugging.The heating device with large power can heat quickly. The upgraded platinum resistance thermistor has a more sensitive temperature sending and longer service life.

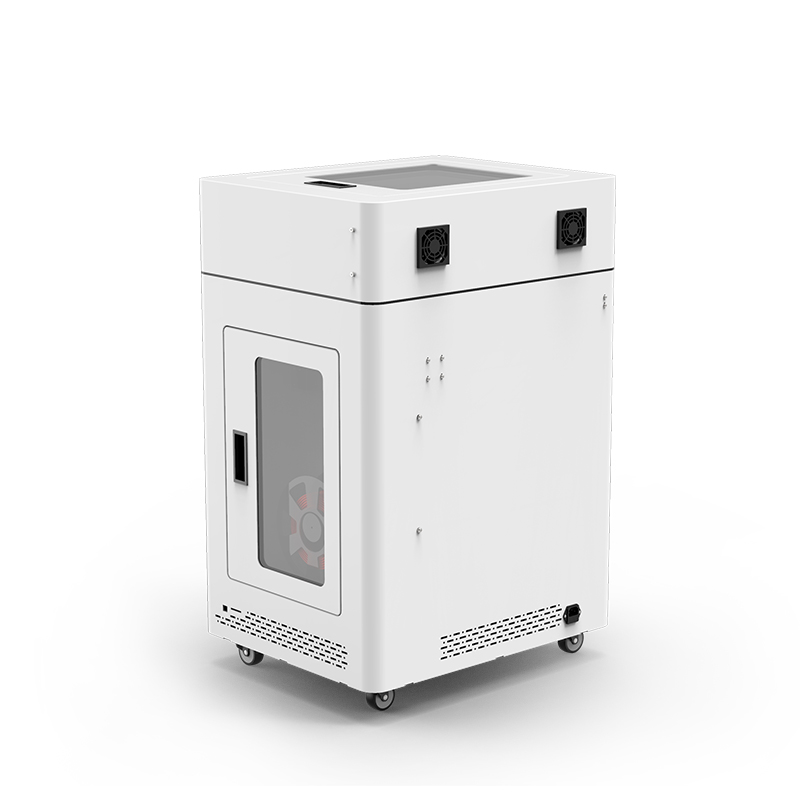

Air purification system

Equipped with double 6.25 fans, it effectively reduces the air dust and avoids excessive cabinet temperature, which ensures the printing effect.

LED Light/Real-time printing observation

Built-in LED light with soft light is convenient to observe the printing process and avoid printing failure.

Technical specifications
Usable Nozzle Type MK8
Usable Filament Diameter 1.75 mm
Max Nozzle Temperature 280 ºC
Open Filament System Yes
Extruder Type Bowden
Recommended Printing Speed Max 180 mm/s (
Build Area 300 mm x 300 mm x 400 mm
Build Plate Temp Max 110 ºC
Build Plate Material Carborundum glass plate
Build Plate Attachment clamp
Build Plate Leveling System BL-Touch
Build Chamber During Process Open or Closed
Filament Chamber Closed Yes
Extruder Number Of 1
Installation Space / Requirements
Total Mass Overall Dimensions 540 mm x 471 mm x 885 mm
Total Weight 58 kg
Max Power Consumption 500 W
Voltage AC: 100 V – 240 V (50/60 Hz)
DC: 24 V
Hepa Filter Yes
Filament Runout Sensor Yes
Power Loss Fail Safe Yes
Touch Screen Yes
SD Card Yes, SD-Card
USB Port Yes
Layer Height 0.1 – 0.3 mm
Shipping Box 700 mm x 640 mm x 1115 mm
Shipping Weight 110 kg

Additional information

Weight 78 kg
Dimensions 67 × 58 × 29 cm
